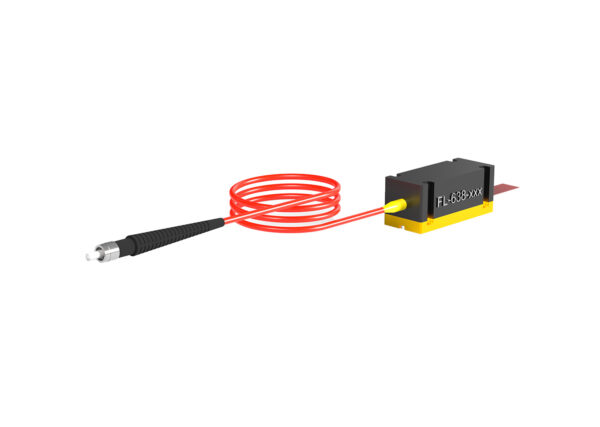

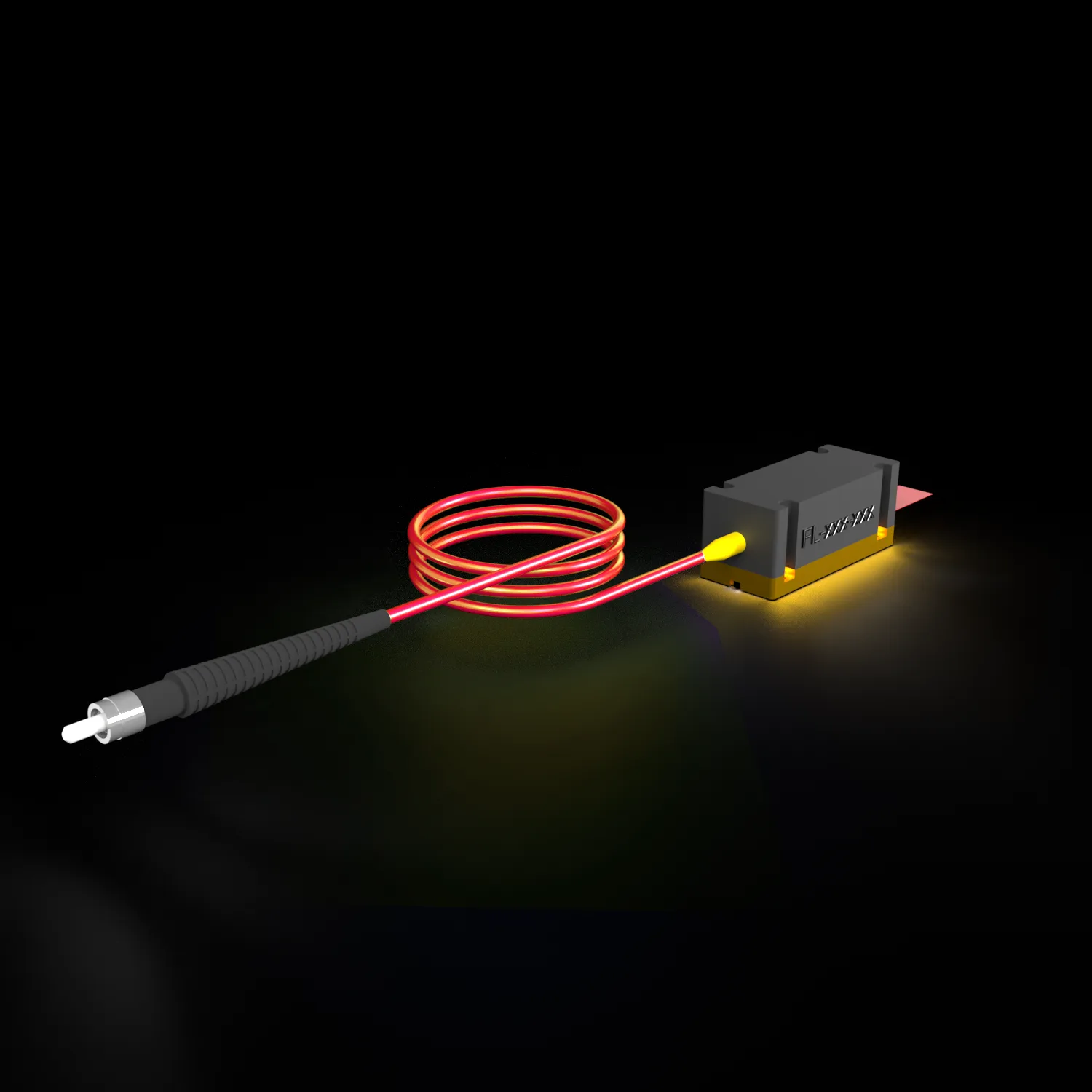

700mW 638nm Faser-Laser

To provide you with an optimal experience, we use technologies such as cookies to store and/or access device information. If you consent to these technologies, we may process data such as browsing behavior or unique IDs on this website. If you do not give or withdraw your consent, certain features and functions may be impaired.

Functional Immer aktiv

The technical storage or access is strictly necessary for the legitimate purpose of enabling the use of a specific service expressly requested by the subscriber or user, or for the sole purpose of carrying out the transmission of a communication over an electronic communications network.

Preferences

The technical storage or access is necessary for the legitimate purpose of storing preferences that have not been requested by the subscriber or user.

Statistics

Technical storage or access for statistical purposes only. The technical storage or access is necessary for the legitimate purpose of storing preferences that have not been requested by the subscriber or user.

Marketing

The technical storage or access is necessary to create user profiles, to send advertising or to track the user on a website or across several websites for similar marketing purposes.

Modell	FL-638-700
Ausgangsleistung (typ.)	700mW
Transversalmodus	Multi
Zentrale Wellenlänge (typ.)	638nm
Toleranz Wellenlänge	±5nm
Bandbreite	≤5nm; 2nm typ.
Stecker	SMA oder FC/PC
Faserkern (typ.)	105µm (andere Durchmesser auf Anfrage)
NA der Faser (typ.)	0,22
Faserlänge (typ.)	1m (andere Längen auf Anfrage)
Betriebsstrom	1300mA
Betriebsspannung	2,8V
Abmessungen	50 x 21 x 21 mm³
